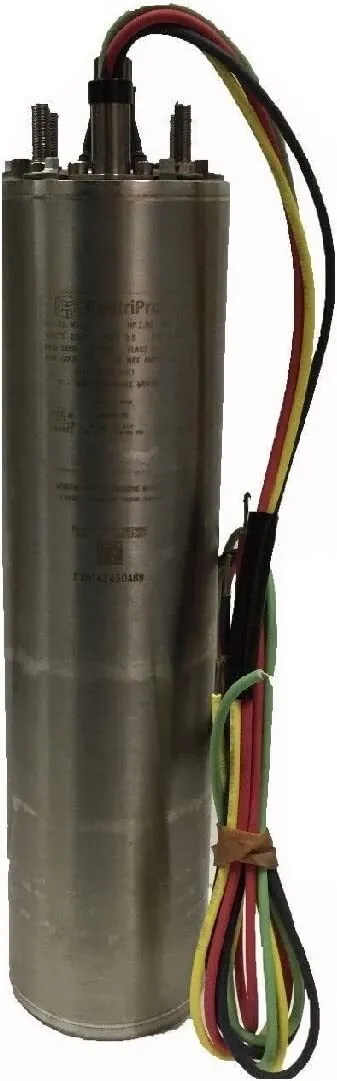

Goulds M50412 4" Submersible CentriPro Motor, 3 Wire, 5 HP, 230V, 1 PH
Goulds M50412 4" Submersible CentriPro Motor, 3 Wire, 5 HP, 230V, 1 PH - Image 2
Goulds M50412 4" Submersible CentriPro Motor, 3 Wire, 5 HP, 230V, 1 PH - Image 3

Goulds M50412 4″ Submersible CentriPro Motor, 3 Wire, 5 HP, 230V, 1 PH

$2,570.00

  • Stainless steel casing and upper and lower end bells
  • Three-shoe Kingsbury thrust bearing
  • Stainless steel, 17-4 PH splined shaft
  • Built-in check valve allows well water to enter motor as needed
  • Surge arrestors built-in

2 in stock

SKU: XS-QMWB-RP4I Categories: ,

Description

  • Brand: Goulds
  • Mfg. Number: M50412
  • Product Type: Motor
  • Application: Water systems
  • Horsepower: 5 HP
  • Voltage: 230 Volts
  • Phase: 1
  • Power: 3.7 kW
  • Frequency: 60 Hz
  • Service Factor: 1.15
  • Locked Rotor Amps: 101
  • Main Winding Resistance: 0.6-0.8 Ohms
  • Start Winding Resistance: 1.3-1.7 Ohms
  • Thrust Rating: 1500
  • Rotation: Counterclockwise
  • Standard Control Box: CB50412CR
  • Deluxe Control Box ( Mag Contactor): CB50412MC
  • Design: Water lubricated
  • Construction Material: 304 Stainless steel construction
  • Shaft Material: 17-4 PH splined stainless steel
  • Motor Type: 3 Wire
  • Max Water Temperature: 86°F
  • Length: 27.7″
